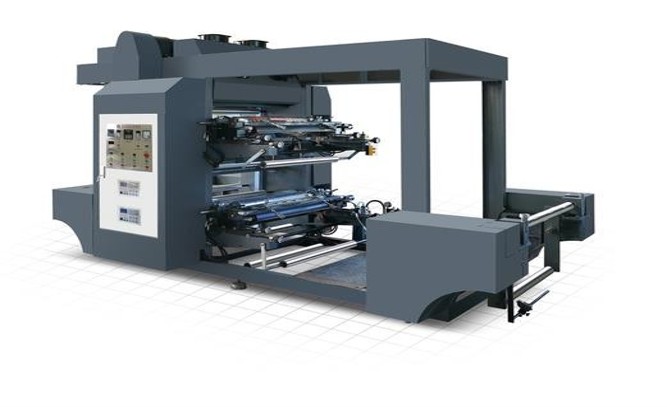

2-color 800mm printing machine

Machine Features:

Structure type	Stack type
Material	Non-woven fabric, Paper, Film (PVC.PE.BOPP.PE), Aluminum foil,
Thickness of plate	1.7mm (customized by client)
Printing length	280-1000mm (customized by client)
Printing speed	60m/min
Register precision	±0.3mm
Transmission drive type	Synchronous belt

Feeding material part:

Single unwinder system, manual loader for unwind system
Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
Air shaft
EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right.
Automatic tension control system with magnetic brake(5KG).
Roller core diameter: 76mm
Discharge maximum diameter: 800mm

Printing sections:

plate roller circumference: 300-1000mm, standard less than 400mm
print material: resin plate or rubber plate
Transmission between printing roller and anilox roller: Helical gears
printing chromatography: 360-degree rotation
adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
Printing roller lifting system: Automatic Hydraulic cylinder control roll up and

Drying system :

The machine is equipped with blower and heater; and the heater employed central temperature control system
Dry apparatus between each color, and one more dry apparatus after printing finished

Rewinding Part：
