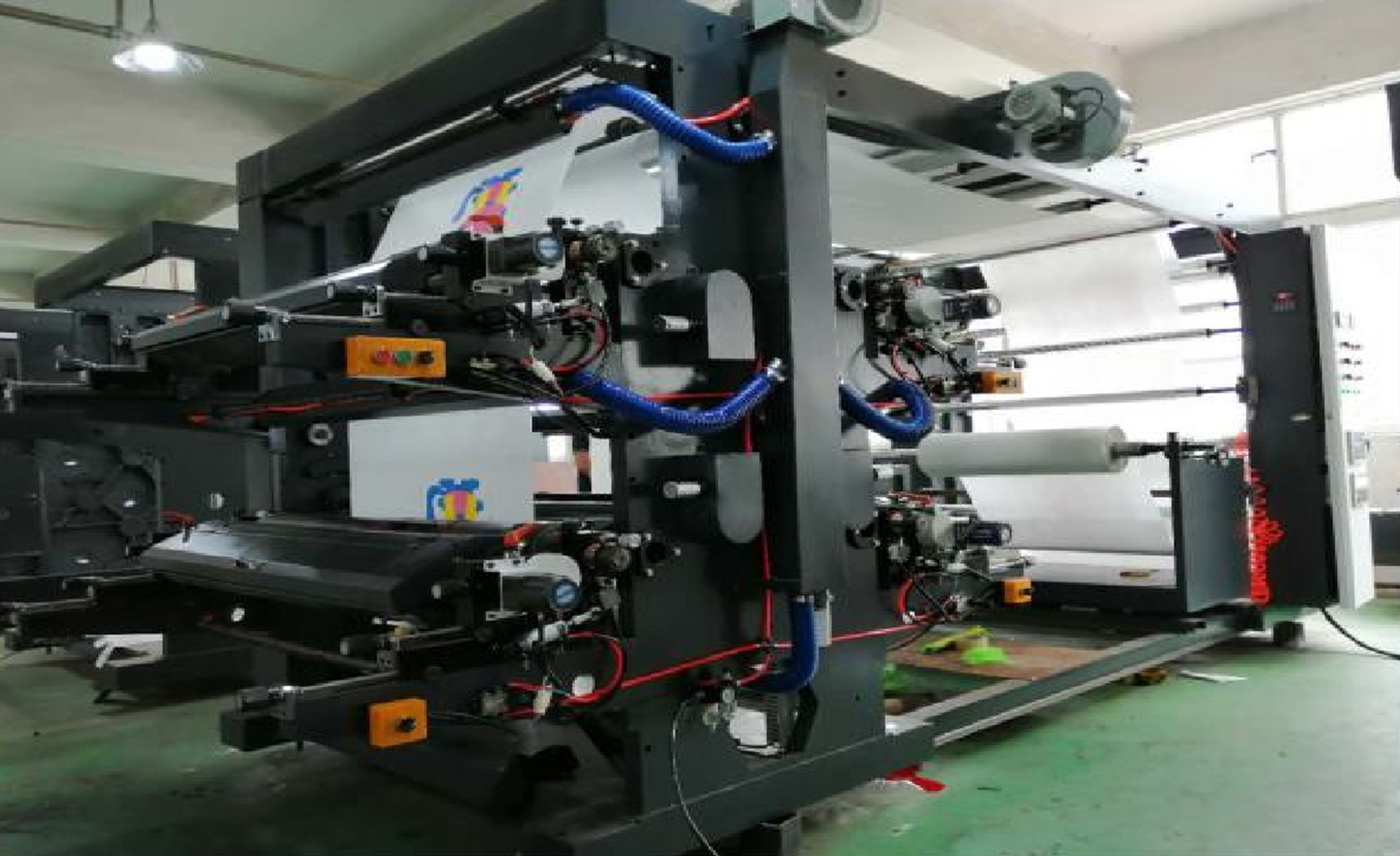

Machine detail :
The Price including :
- Rubber Roller
- Plate roller
- Metal anilox roller 6pcs
- Mental anilox
- Air shaft 4pcs
- Auto tension control
- Epc SYSTEM
- Double rewind and unwind
- Printing cylinders 30/35/40/45/50 each size 4 pcs
| Technical Specification | |
| Model | YT-41000 |
| Material feeding width | 1000mm |
| Max printing width | 960mm |
| Thickness of plate (including two-sided glue paper) | 2.28mm (customized by client) |
| Printing length | 191-914mm, (customized by client) |
| Printing speed | 60m/min |
| Max. Diameter of roll material | Φ600mm |
| Register precision | |
| Total Power | 23KW |
| Weight of machine | 3800Kg |
| Overall Dimension(L×W× H) | 4500×2000×2700mm |
Feeding material part :
- Single unwinder system, manual loading unloading system
- Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
- Air shaft
- EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right.
- Automatic tension control system with magnetic brake(5KG).
- Roller core diameter: 76mm
- Discharge maximum diameter: 600mm
Traction parts :
- traction consists of: chrome-plated roller, rubber roller
- group number: 2 groups
Printing sections:
- printing consists of: plate roller, anilox roller, rubber roller
- plate roller circumference: 200-1000mm, standard size: less than 400mm
- print material: resin plate or rubber plate
- Transmission: spur gear drive
- printing chromatography: 360-degree rotation
- adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
- rise and fall of plate roller: manual
Drying system:
- drying method: blow and heating
- the heating zones: n+1
- fans: 2
- fan power: 75kw+0.55kw
Electrical parts:
- Main Motor: 2kw
- Ink Motor: 06kw
- Speed using frequency converter control
Rewinding Part :
- Single rewinder system, manual loading unloading system
- Automatic tension control system with magnetic brake(5KG).
- Air shaft
- Roller core diameter: 76mm
- Discharge maximum diameter: 600mm
-
Plate roller v standard 400mm for machine, making v plate range 191–1000mm. v Can be customized. Rubber Roller v Transport the ink to Anilox roller Metal anilox Roller v Carry the inks to the plate cylinder. Transmission by spur gear v Spur gear transmission.
| Dryer v Heater with blowing fan. | |
| Auto tension control &magnetic power v Control un&rewind parts balance material both side. | |
| Air shaft v tight to material, flat material , better printing | |
| Epic edge position correction v Avoid material move left and right precision register |
