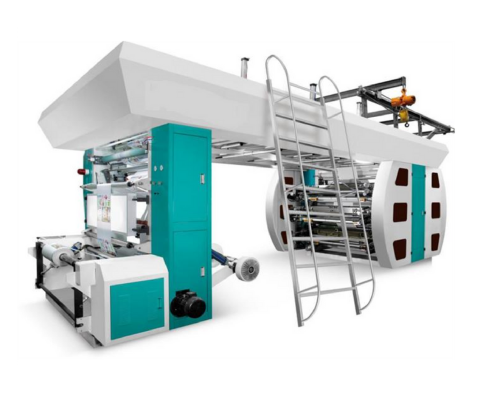

Machine detail :
- Chamber doctor blade with auto ink pump* 6pcs
- Plate roller 40cm *6pcs.
- Ceramic Anilox Roller (80–1000LPI) * 6pcs
- EPC (Ultrasonic web guide) *1pcs
- Air shaft * 2pcs
- Hydraulic in & out printing roller
- Auto hydraulic loading unloading
- Auto tension control*2sets
- PLC+Video inspection
- Auto-Lubrication system for central drum
- Color registration adjusting by motor
- Motor control ceramic roller and plate roller in and out
- All aluminum rollers are oxidized
- Crane to lift the cylinder and ceramic anilox roller
Machine Features:
1. Non stop unwind+rewind
2. The gearless sleeve full servo printing system
3. Fully automatic color registration
4. Fully automatic frequency conversion control drying system
| Technical Specification | |
| Model | YTC-61200 |
| Material Feeding Width | 1200mm |
| Max Printing Width | 1160mm |
| Colors | 6 colors |
| Material | Film. PVC.OPP.PE.BOPP.PE.NY.PET.CPP. |
| Thickness of plate | 1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm Customized is available |
| Printing length | Standard is 400mm，Customized is available from 300- 1000mm |
| Printing speed | 120m/min-150m/min |
| Register precision | ±0.15mm |
| Gear module | 1.5mm |
| Heating method | Electricity heating |
| Unwind/rewind paper | core 3＂ |
| Max.unwind/rewind dia. | 1000mm |
| Structure type | Central impression（central drum） Gear drive(China) |
| Part 1 Unwind & Rewind Unit | |||||
| SN | Item | Qty | Specification | Picture | |
| 1 | Air shaft | 1SET | Roller Dia. 76mm | ||
| 2 | Hydraulic loading | 1SET | Max 1 ton Roll Diameter:Max 1200mm | ||
| 3 | Hydraulic station | 1SET | Output hydraulic oil to the hydraulic cylinder on the machine | ||
| 4 | Tension Control | 2SETS | 1. Magnetic power tension10KG 2.2sets for unwind and rewind | ||
| 5 | Web guide | 1SET | 1. Automatic EPC system 2. After manual adjustment, change to automatic mode | |
| 6 | Hydraulic unloading | 1SET | Max 1 ton Roll Diameter:Max 1200mm | |
| Part 2 Printing Unit | |||||
| SN | Item | Qty | Specification | Picture | |
| 1 | central drum | 1 SET | 1. Made from superior alloy 2.Steel and precise dynamic balance and electroplated treatment 3. Installed the high precision encoder , synchronous the speed | ||
| 2 | Transmissio n | 1 SET | Driven by a big gear,high accuracy | ||
| 3 | Plate roller | 6 Pcs | 1. Standard 400mm for machine 2. Circumference: 280-1000mm 3. Can be customized. | ||
| 4 | Ceramic anilox roller | 6 Pcs | 1. Transfer ink evenly 2. Range: 300-1000 lines/in | ||
| 5 | Chamber doctor blade | 6 Pcs | 1. Made from Aluminum alloy 2. Fast speed ,not spill the ink 3. Close type to reduce solvent volatilization 4. Teflon coating surface treatment | ||
| 6 | Ink pump | 6 Pcs | 1. Automatic circle system 2. Double diaphragm pump | |||
| 7 | Automatic lubrication system | 1 SET | Lubricate the big gear of the center drive | |||
| 8 | Motor for registration | 6SET S | 1. Motorized longitudinal registration and Motorized Transversal 2. check the video inspection to plc | |||
| 9 | Motor for Forward and backward | 6SET S | Motor control printing group to move forward or backward | |||
| 10 | Frame | 1SET | 1.Made of alloy cast iron with high strength 2.Thickness 100mm | |||||
| 11 | Guide roller | 1SET | Φ100mm (Surface oxidation treatment) | |||||
| 12 | Crane | 1SET | It’s easy to lift and down the printing rollers and anilox rollers. | |||||
| 13 | PLC control panel | 1SET | Touch panel | ||
| 14 | Video inspection | 1SET | Check the printing quality on the video screen | ||
| 15 | Remoter | 2SET | One control the crane One for adjust the plate roller | ||
| Part 3 Drying Unit | ||||
| SN | Item | Qty | Specification | Picture |
| 1 | Top main oven | 1SET | 1. Use hot air drying, intelligent constant temp control. 2. Consistant 3 sets oven by independent 3. Total power:30KW | |
| 2 | Color group oven | 6SET | 1. Installed after the printing units 2. Each set power:10KW | |
| Part 4 Electrical appliances | ||||
| SN | Item | Qty | Specification | Picture |
| 1 | Main motor | 1SET | Siemens | |
| 2 | Crane control | 1SET | / | |
| 3 | relay | 1SET | / | |
| 4 | PLC control | 1SET | / | |
| Optional device | ||||
| SN | Item | Qty | Specification | Picture |
| 1 | Corona | 1SET | Make the surface of the product have stronger adhesion | |
| 2 | Anilox ultrasonic cleaning machine | 1SET | Using ultrasonic vibration to peel off and clean the ink on the surface of the anilox roller | |
| 3 | Plate Mounting Machine with Camera | 1SET | Mainly used in flexograhic printing machine to complete plate mounting operation | |
| 4 | Air Compressor | 1SET | The machine need 0.8kpa air | |
| 5 | Cooling chiller system +double wall central drum | 1SET | central drum double wall assort with the chiller , the water running and recycle inside of the central drum,and keep the surface temperature 30ºC (the supplier need 90 days make the double wall central drum) | |
| 6 | Turning bar | 1SET | For double sides printing (max width of material 38cm) |
| Main Component | |
| Main Motor | Siemens |
| Bearing | NSK |
| Link operation motor | Maili |
| Control speed motor | |
| Inverter of main motor | Delta |
| Contactor | Schneider |
| Relay | Schneider |
| Ceramic anilox roller | Yuncheng |
| Auto tension control | Dongdeng |
| Urgent Stop Switch | Schneider |
| Magnetic power | Haitai |
| Chamber doctor blade | Lisheng Made |
| Button Switch | Schneider |
| Counter | CHNT |
| EPC system | ARISE |
| Main Component | |
| Main Motor | Siemens |
| Bearing | NSK |
| Link operation motor | Maili |
| Control speed motor | |
| Inverter of main motor | Delta |
| Contactor | Schneider |
| Relay | Schneider |
| Ceramic anilox roller | Yuncheng |
| Auto tension control | Dongdeng |
| Urgent Stop Switch | Schneider |
| Magnetic power | Haitai |
| Chamber doctor blade | Lisheng Made |
| Button Switch | Schneider |
| Counter | CHNT |
| EPC system | ARISE |
| Free accessories | |||
| Name of commodity&description | Quantity (PCS) | Name of commodity&description | Quantity (PCS) |
| Oil Gun | 1 | Diaphragm | 4 |
| 1-10inner hexagonal spanner | 1 | m6×15 screws | 10 |
| philips driver | 1 | Pneumatic handplate valve | 1 |
| monkey wrench | 1 | m8 m10 Three-way trachea gas-type fitting | 4 |
| Localizer | 1 | Screw to lock ink disc handle | 4 |
| DE471P32A | 1 | Close the cartridge lock of the scraper | 4 |
| Y090 main command switch Y090 | 1 | 35mm width blade | 2 |
| Indicator switch | 2 | Snap springs | 2 |
| dotting button | 1 | Hydraulic cylinder solenoid valve | 1 |
| distance switch | 2 | 6 color satellite machine left and right shift motor | 1 |
| copper brush | 2 | Ink motor drives one-way bearing of anilox roller | 2 |
| Sealer | 8 | Hall switch | 2 |
