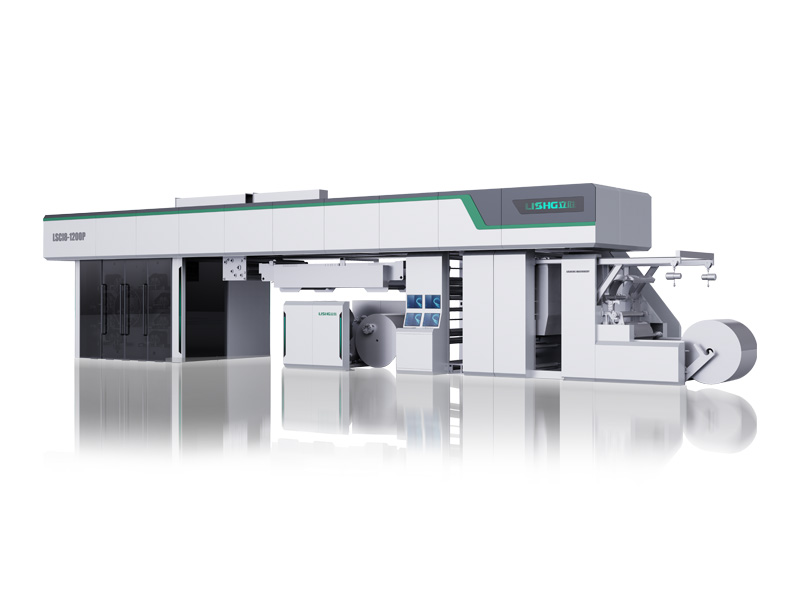

Machine detail
Machine Features:
1. Non stop unwind+rewind
2. The gearless sleeve full servo printing system
3. Fully automatic color registration
4. Fully automatic frequency conversion control drying system
| Model | YTE-81200mm |
|---|---|
| Max Width Of Material | 1200mm |
| Max. Width of Printing | 1160mm |
| Colors | 8 colors |
| Material | Paper, PE, PET, BOPP, PVC |
| Printing length (Repeat) | 400mm – 800mm |
| Printing Cylinder | Sleeve type |
| Ceramic Anilox Roller | Sleeve type |
| Max. Speed of Material Printing | 350–400m/min (according to material & design) |
| Machinery Mechanical Speed | 450m/min |
| Max. Unwind / Rewind Dia. | Φ800mm |
| Adhesive Tape Thickness | 0.38mm |
| Thickness of Plate | 1.14mm, 1.7mm, 2.28mm, 2.84mm (or customized) |
| Registration Precision | ±0.08mm |
| Heating Method | Electric heating |
| Ink | Water-based ink / Solvent ink |
| Power | 380V, 3PH, 50Hz/60Hz |
Product Application:
Max width of material: 1200mm
Printing color: 8colors
Max printing width: 1160mm
Machinery mechanical speed: 450m/min
Max. Speed of Material Printing: 350-400m/min, according to different material and print design
Material: Paper, PE, PET, BOPP, PVC
Max. Printing Length (Repeat): 400mm-800mm
Machine power: 380V, 3PH, 50HZ/60HZ
