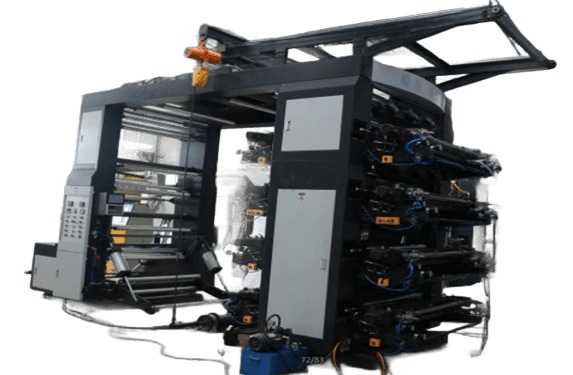

8-colors High-speed Flexo printing machine

Machine detail :

The Machine Includes :

Ceramic Anilox Roller (each color 1pcs)
Plate roller (print length less than 400mm 1set is free, more than 400mm need extra money)
8pcs single doctor blade
Auto ink pump
Auto Tension controller & magnetic brake
Web guide (EPC)
Hydraulic Lift & down printing
Main motor from Taiwan
Frequency converter DELTA brand from Taiwan
Contactor schneider brand
Timing belts driving
Pneumatic lift and down for rewind and unwind
Joist barrow

Main parameter :

Technical Specification
Model	YTB-81000
Material feeding width	1000mm
Max Printing Width	960mm
Structure type	Stack type
Material	Non-woven fabric, Paper, Film (PVC.PE.BOPP.PE), Aluminum foil, PP woven
Thickness of plate	1.7MM
Printing length	280-1000mm (customized by client)
Printing speed	80-100m/min
Register precision	±0.3mm
Transmission drive type	Synchronous belt
Thickness of tape	0.38mm

Feeding material part :

Single unwinder system, pneumatic loading unloading system
Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
Air shaft
EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right.
Automatic tension control system with magnetic brake(10KG).
Roller core diameter: 76mm
Discharge maximum diameter: 1000mm
Maximum weight of material roll on rewinder 1000kg

Printing sections:

plate roller circumference: 300-1000mm, standard less than 400mm
print material: resin plate or rubber plate
Transmission between printing roller and anilox roller: Helical gears
adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
Printing roller lifting system: Automatic Hydraulic cylinder control roll up and

Drying system:

The machine is equipped with blower and heater; and the heater employed central temperature control system
Dry apparatus between each color, and one more dry apparatus after printing finished

Rewinding Part：

MACHINE POWER

Main motor 7.5kw siemens brand from Germany

Rewind motor 2.2kw

Dryer +heater 30kw maximum

Details:

Plate roller v standard 400mm for machine, making v plate range 280–1000mm. v Can be customized.
Rubber Roller v Transport the ink to Anilox roller
Auto tension control &Magnetic power v Control uncrewed parts balance material both side.
Air shaft v tight to material, flat material, better printing

Heat dryer (each color with 1 set heater, one long heater chanel on the top) v Big heat dryer with blowing wind drying fast.
Synchronous belt v Stable transmission, with high register precision
2. Auto pneumatic/hydraulic loading unloading. v It is easy to transport material.

Optional device(need extra money to get perfect machine)
Treatment twice on the surface with 6 kw power motor

Plate mounting machine
Auto tension control & magnetic power (2 set ) Mitsubishi brand from Japan v Control uncrewed parts balance material both side.
v EPC RE brand from Italy
Video Inspection Check the printing quality on the video screen.
Joist barrow 1800USD v It’s easy to lift the materials

DOUBLE REWIND AND UNWIND SYSTEM 2100USD
Chamber doctor Blade 2000USD PER PCS 8 COLOR MACHINE NEED 8 PCS v Good for high speed. Will not splashing the ink even high-speed running

The main list of detailed configurations Remark the main motor and key parts can change which brand as your request.
	Main part of the machine	The brand name
	Main motor	Taicang brand from Taiwan
	Converter	Delta from Taiwan
	Gear	NSK
	Auto tension	Haiti brand state-owned marketing enterprises
	EPCA	From China
	Contactor /switch /button	Schneider from Germany
	Ceramic anilox	Murata brand from Japan
