The Machine Contains :
- With auto loader with dryer
- With Bimetallic screw good quality can use long time
- With ceramic heater and Stainless-steel cover
- With die lip 100mm-HDPE
- With fix die head and single winder
- Use China top brand motor and SINEE inverter
- With corona treater
- Gearbox with oil and water cooling
- Make sure more distance for the motor

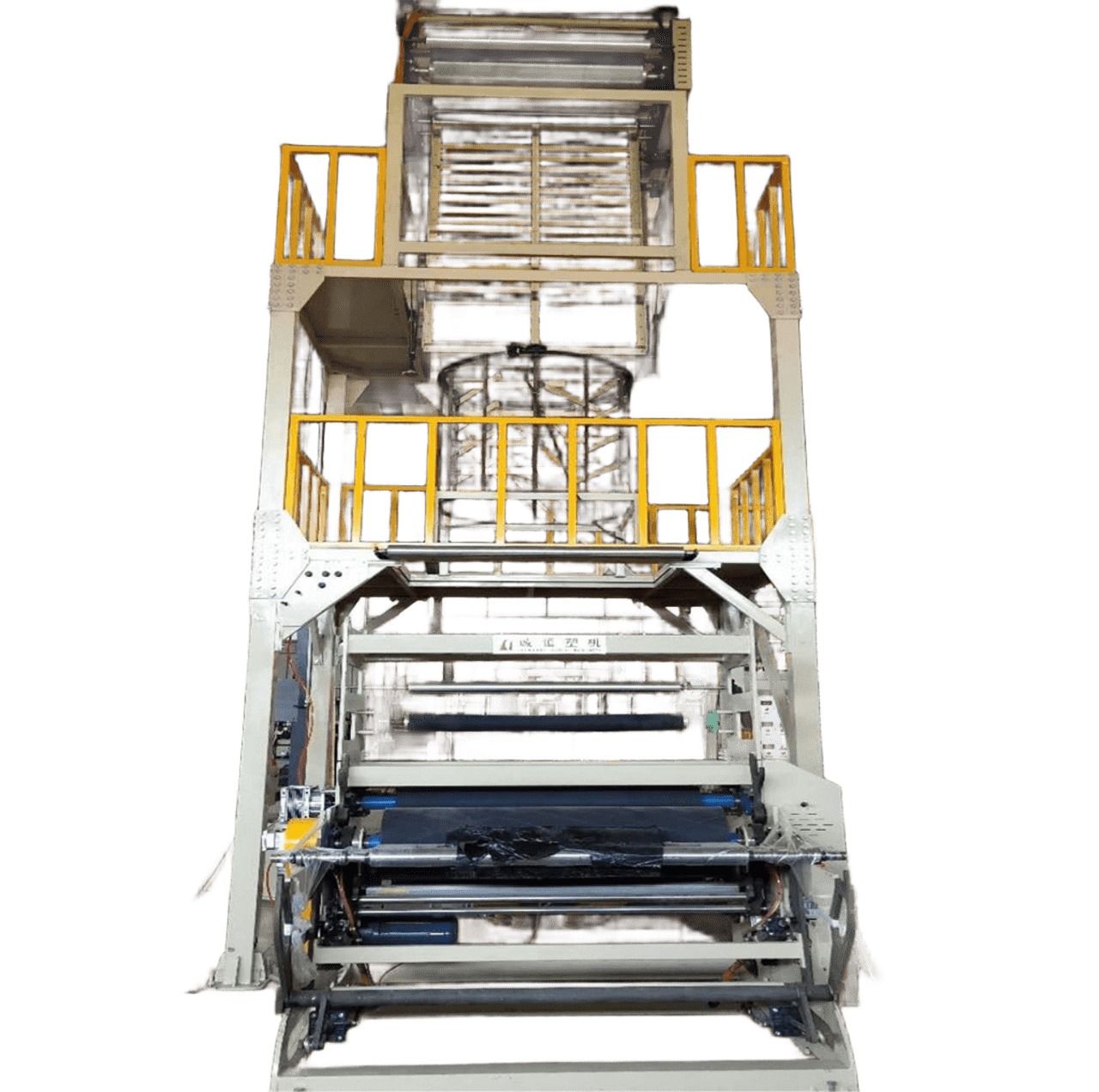

| Model | ABA50/50/1200 |
| Width of the film | 600-1100mm |
| Thickness of the film | 0.006-0.15mm |
| The max output | 80-100kg/h According to different width, thickness of film, die size and raw material characteristics to change |
| Raw material | HDPE /LDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives |
| Power consumption | 28kw/h |
| Weight | 3500kg |
| Overall dimension （L*W*H） m | 6.5*3.8*6.8 |
| Extruder unit | |
| Diameter of screw | 50/50 Bimetallic |
| L/D ratio of screw | 30:1 |
| Rotation speed of screw | 10-120r/m |
| Barrel Fan | Zone 4 barrels install over-temperature fan |
| Gear box | 173×2 Extruder special hard gear reducer tooth grinding teeth hardened, internal and external oil circulation system |
| Main motor | 18.5kwx2 100% Original three-phase variable frequency motor Equipped with inverter control |
| Die head unit | |
| Die diameter | 100mm-HDPE 250mm-LDPE |
| Cool unit | |
| Air ring type | double vents vacuum air ring |
| Air ring material | High quality Taiwan cast aluminum alloy air ring |
| Bellow power | 5.5kw Shanghai production of high-pressure mute fan |
| Traction unit | |
| Width of take up roller | 1200mm |
| Traction roller material | NBR roller |
| Take up motor | 1.5kw Installation of RV series reducer variable frequency motor inverter control |
| Take up speed | 100m/min |
| Embossing roller | cold embossing unit |
| Lambdoidal board | wooden |
| Bubble stabilizing ring | Electric wooden guide |
| Guide roller | Aluminum guide roller (HV300-HV700) surface treatment |
| Winding unit | |
| Winding type | Surface friction type with double winding. |
| Drive type | motor with inverter control |
| Film expanding roller | Smoothing roll |
| Electric control cabinet | low-voltage is CHNT Electric, foteck SSR, Huibang temperature control table |
