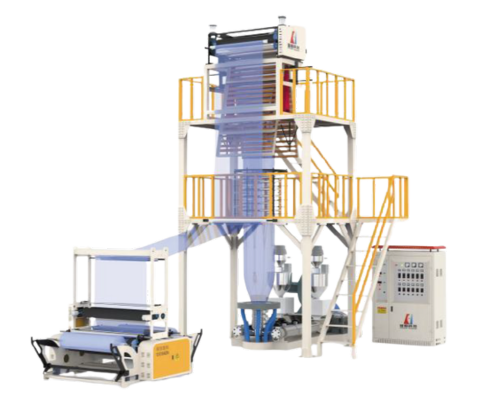

Machine detail :
Machine Details :
- With auto loader 360G with self-cleaning with dryer
- With Bimetallic high speed screw good quality can use long time
- With ceramic heater (save power and rise temperature )and Stainless steel cover
- With rotary die head and manual back-to-back winder
- With HEBEI brand motor/SIEMENS BEIDE (2 motor keep big distance) and Micfind inverter
- Gearbox with water and oil cooling system
- Double vents air ring
- air shaft 2pcs
- With 4kw corona treater
- Traction Rubber roller Silicone (or High temperature resistant rubber roller)
- All SSR change to contactor ALL motor 60hz or 50/60hz
- With side split knife-2pcs and center slitting knife-1pcs
Machine will be 1 year quality guarantee
| Model | □ABA55/55/1400 | |
| Width of the film | □800-1200mm | |
| Thickness of the film | 0.06-0.15mm | |
| The max output | 100-150kg/h According to different width, thickness of film, die size and raw material characteristics to change | |
| Raw material | HDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives | |
| Power consumption | □35kw/h | |
| Weight | □3800kg | |
| Overall dimension （L*W*H ）m | □6.5*3.8*6.8 | |
| Extruder unit | ||
| Diameter of screw | □Φ55/55 high speed screw Bimetallic 1 years guarantee | |
| L/D ratio of screw | 32:1(With force feeding and water cooling) | |
| Rotation speed of screw | 10-120r/m | |
| Barrel Fan | Zone 3 barrels install over-temperature fan | |
| Gear box | □180#×2 Extruder special hard gear reducer tooth grinding teeth hardened, internal and external oil circulation system | |
| Main motor | □22kw×2 100% Original three-phase variable frequency motor Equipped with inverter control | |
Die diameter | 150mm-HDPE 300mm-LDPE | |
Cool unit | ||
Air ring type | double vents vacuum air ring | |
Air ring material | Taiwan quality cast aluminum alloy air ring | |
Bellow power |
□7.5kw Shanghai production of middle-pressure mute fan | |
Traction unit | ||
Width of take up roller | □1400mm | |
Traction roller material | NBR roller | |
Take up motor | □2.2kw Installation of RV series reducer variable frequency motor inverter control | |
Take up speed | 100m/min | |
Embossing roller | without embossing unit | |
Lambdoidal board | Polished wooden | |
Bubble stabilizing ring | □Electric wooden roller guide | |
Guide roller | Aluminum guide roller (HV300-HV700) surface treatment | |
Winding unit | ||
Winding type | Surface friction type with double winding. | |
Drive type | Motor with inverter control | |
Film expanding roller | Smoothing roll | |
Electric control cabinet |
low-voltage is CHNT Electric, fotek contactor, TOKY temperature control table | |
