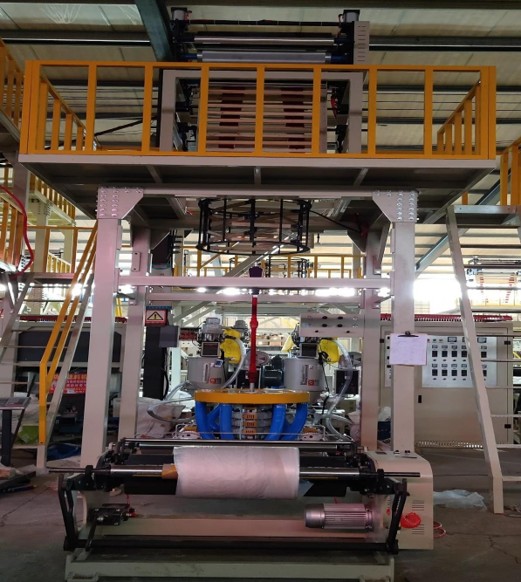

The Machine Contains :
- With auto loader
- With Bimetallic high speed screw good quality can use long time
- With ceramic heater (save power and rise temperature )and Stainless steel cover
- With fixed die head and single winder
- With China top brand motor and SINEE inverter
- Double vents air ring
- air shaft 2pcs
- One set HDPE die lip and one set lope die lip,2 set air ring lip
- Gearbox with oil and water cooling
- Make sure more distance for the motor
| Model | ABA45/45/900 | |
| Width of the film | 300-800mm | |
| Thickness of the film | 0.006-0.15mm | |
| The max output | 60-85kg/h According to different width, thickness of film, die size and raw material characteristics to change | |
| Raw material | HDPE LDPE virgin raw material, recycled material, CaCO3 compound, biodegradable material, masterbatch and additives | |
| Power consumption | 28kw/h | |
| Weight | 3800kg | |
| Overall dimension （L*W*H）m | 6.5*3.8*5.3 | |
| Extruder unit | ||
| Diameter of screw | 45/45 Bimetallic | |
| L/D ratio of screw | 30:1 | |
| Rotation speed of screw | 10-120r/m | |
| Barrel Fan | Zone 3 barrels install over-temperature fan | |
| Gear box | 146# /146# Extruder special hard gear reducer tooth grinding teeth hardened, internal and external oil circulation system | |
| Main motor | 15kw / 15kw 100% Original three-phase variable frequency motor Equipped with inverter control | |
| Die head unit | ||
| Die diameter | 80mm- HDPE 150mm-LDPE |
| Cool unit | |
| Air ring type | double vents vacuum air ring |
| Air ring material | High quality cast aluminum alloy air ring |
| Bellow power | 3.7kw Shanghai production of high-pressure mute fan |
| Traction unit | |
| Width of take up roller | 900mm |
| Traction roller material | NBR roller |
| Take up motor | 1.5kw Installation of RV series reducer variable frequency motor inverter control |
| Take up speed | 100m/min |
| Embossing roller | cold embossing unit |
| Lambdoidal board | Polished wooden frame |
| Bubble stabilizing ring | Electric wooden guide |
| Guide roller | Aluminum guide roller (HV300-HV700) surface treatment |
| Winding unit | |
| Winding type | Surface friction type with single winding. |
| Drive type | Motor with inverter control |
| Film expanding roller | Smoothing roll |
| Electric control cabinet | low-voltage is CHNT electrical appliances, Taiwan FOTEK SSR Huibang temperature controller |
