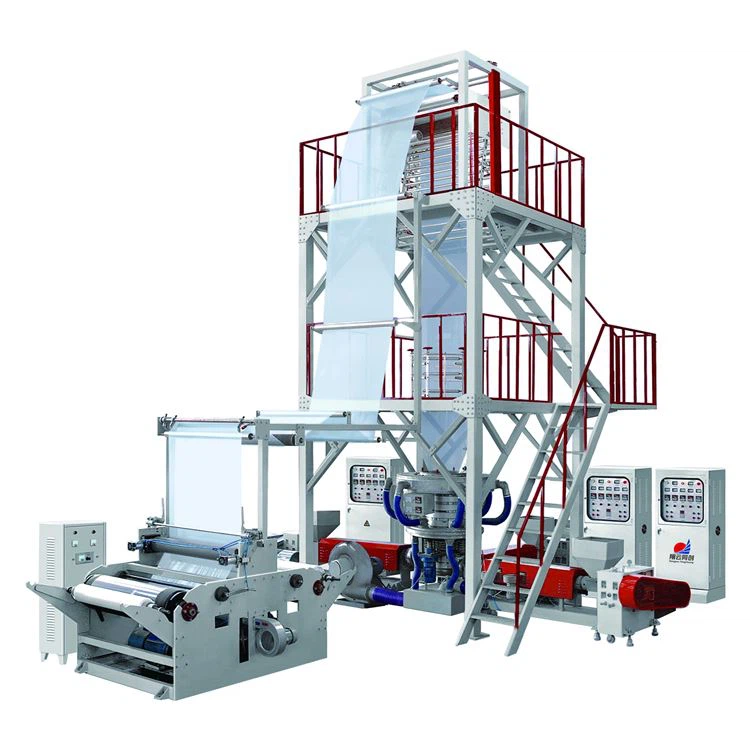

ABC 3 layer film blowing machine is composed of three extruders and one three-layer co-extrusion die head.
A extruder is used to produce the outer layer of the film
B extruder is used to produce the middle layer of the film
C extruder is used to produce the inner layer of the film
The three-layer film is compounded by extrusion in the die head to form a three-layer co-extrusion film. The product quality has reached a new level. The film produced has the characteristics of high transparency, durability, high toughness, low temperature thermal cutting, composite fastness, and good curl resistance. In addition, it has good barrier properties, freshness preservation, moisture resistance, frost resistance, oxygen barrier properties, and oil resistance, and can be widely used in light and heavy packaging of various fresh fruits, meat, pickles, fresh milk, liquid beverages, and medical supplies.
The 3 layer blown film extrusion machine adopts a new high-efficiency and low-consumption extrusion production line. The machine is equipped with autoloader, high-quality high-speed air ring, meter weight control system, advanced PLC screen automatic control system and other technologies. The abc film blowing machine adopts bi-metallic screw, which has excellent hardness and wears resistance, and can still ensure a large number of granules to be plasticized under high-speed and high-pressure environments. The service life can reach 3-5 times of ordinary screw.
Hydraulic screen changer
Edge recycling machine
Automatic rewinder
Corona treater
IBC internal cooling system
Upper rotation system
| Model | XY-3L1200 | XY-3L1500 | XY-3L2000 | XY-3L2500 |
| Suitable material | HDPE / LDPE / LLDPE / EVA/ Caco3 / PBAT / PLA | |||
| Film width | 800-1200mm | 1000-1500mm | 1200-2000mm | 1500-2500mm |
| Roller width | 1300mm | 1650mm | 2200mm | 2700mm |
| Film thickness | 0.028-0.20mm | |||
| Max.Output | 120kg/h | 150kg/h | 200kg/h | 250kg/h |
| Screw diameter | Φ50/55/50 | Φ60/65/60 | Φ65/70/65 | Φ70/80/70 |
| Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Driving motor | 15/18.5/15kw | 22/30/22kw | 30/37/30kw | 37/45/37kw |
| Gearbox | 146/173/146 | 180/200/180 | 200/225/200 | 225/250/225 |
| Die size | Φ250mm | Φ300mm | Φ450mm | Φ550mm |
| Machine outside | 6x4x6.5m | 6.7×4.8×7.5m | 9x6x9m | 11×7.5x11m |
- Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
